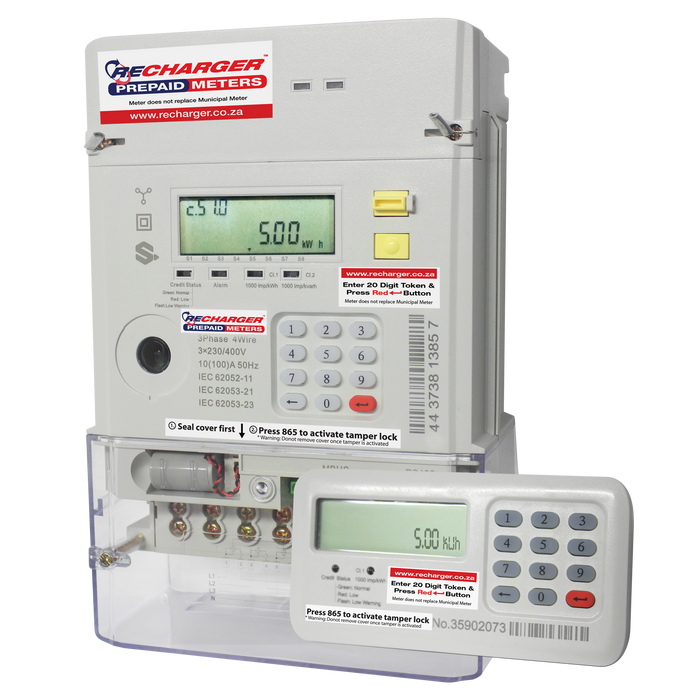

Recharger - Hex Three Phase Split Wired (MBUS) 100Amp (Per Phase) Prepaid Electricity Meter
Ratings : 3 X 230VAC, 50HZ, 5-100A, 40mA Uc2, 2W/10VA, MBUS CIU
Metering and control unit used in a three phase four wire power network. It complies with the STS standard and communicates with a CIU, which works as keypad, via MBUS for energy consumption, monitoring and credit charging. The metering device is installed outside the consumer s premises, whilst the CIU is installed within the home. A pair of communication cables are required to be connected from the meter to the keypad to ensure successful communication between the two. This provides increased security, whilst ensuring consumer convenience.
Sleek and compact Keypad
- Individual units / Body Corporates
- Office parks
- Shopping Centres
- Light Industrial
Meter is configured to operate on the Recharger vending platform only.
NB: Meter operates as a sub-meter and does not replace the Municipal/Eskom meter
What's in the box
- 1 x Recharger - Hex Three Phase Split Wired (MBUS) 100Amp (Per Phase) Prepaid Electricity Meter
- 1 x MBUS CIU
- 1 x Registration form
- 1 x Meter card
- 1 x Meter Installation and User Manual, Communication cable not included
Lifetime Warranty on selected meters. T's & C's apply.
